Problem 74. Prime Number Polyomino Islands in Consecutive-Odd-Number-Labeled Hilbert Curves

Mike Keith sent the following interesting problem:

Here’s a new (I think) prime number problem for your consideration.  Since it involves the Hilbert space-filling curve, let’s start with a brief introduction to the Hilbert Curve.

Hilbert Curve

The Hilbert curve is object that results from iterating a certain procedure an infinite number of times.  We will call each stage of this process an iteration; the curve at each step can either be referred to as “the nth iteration of the Hilbert curve” or the “order n Hilbert curve”.  We are not interested in the limit curve here, only the individual iterations of its construction.

The first 6 iterations of the Hilbert curve are shown in the diagram below.



As you can see, the curve of each order starts in the lower left corner of a square and ends at the lower-right corner and visits the center of every subsquare in the square.  Its construction can be understood in terms of this simple procedure: for each order, take four copies of the previous-order curve and make them half size.  Place two copies in the top two quadrants unchanged, but rotate the copy in the lower left quadrant clockwise by 90 degrees and the lower right copy anticlockwise by 90 degrees, then connect the four copies with three unit-length connector lines.  For illustration, the connector lines are colored black in the order-2 diagram above.

Of course, there are four possible orientations for the whole structure (and hence the Hilbert curve itself), corresponding to rotations of 0, 90, 180, and 270 degrees, but the choice of orientation makes no difference to the properties of the Hilbert curve (or our problem), so for simplicity we will always use the orientation shown in the diagrams above.  We have labelled the order 2 diagram to show the order which with the points are visited as we “walk” the curve from start to end. (The curve could be walked in the opposite order, but again we fix on the convention shown in the diagram.)  Specifically, the numbered labels indicate the number of steps away from the origin, counting along the path of the curve.

In the discussion below we will sometimes want to refer to the position of points along the curve according to their two-dimensional (x,y) position in the square.  For this we will use the convention that the origin of the x,y axes (i.e., (0,0)) is in the lower left corner.  The order-n curve inhabits a grid with 2n points on each side, numbered 0 to 2n-1 in x and y, and there are a total of 2n x 2n = 4n points in the whole grid.  The x,y numbering is illustrated in the order 4 diagram.

When writing programs that involve the Hilbert curve, a very useful function is one that takes the curve order n and an integer d (specifing the distance along the curve of a point we are interested in) and calculates the x,y position of that point in the grid.  The Wikepedia article entitled “Hilbert curve”, in the “Applications and mapping algorithms” section, contains an implementation of this function - see the subroutine called d2xy.  This routine conforms to our x,y usage.

Our Problem

For some integer n > 0, label the 2n x 2n grid of squares with the consecutive odd numbers 1, 3, 5, 7, ... as you walk the path of order-n Hilbert curve.  The diagrams below show the result of doing this for n=1, 2, and 3.  Now color each square according to whether it contains a prime number or not.  In the diagrams below, every non-prime square is colored white while the prime squares are colored various non-white colors (color meanings to be explained in a moment).

Now, consider two prime-number squares to be connected if they share a common edge.  We call a group of one or more connected primes an island, and these islands are simply polyominoes of various sizes: 1-square monominoes, 2-square dominoes, 3-square trominoes, etc.  We color each prime polyomino based on its size; in the diagrams below we only have monominoes (size=1, blue), trominoes (size=3, yellow), pentominoes (size-5, gray), and a 13-omino (orange), though in general, of course, other sizes will appear.

The order-1 Hilbert curve (2x2 square) has a single prime tromino containing 3,5,7.  In order 2 (4x4 square) the primes form two separate pentomino islands.  The order-3 curve (8x8 square, right diagram) is more interesting: there are 5 isolated monomino islands (blue), two trominoes (yellow), one pentomino, and...a massive island of size 13, shown in orange.

To proceed further it is almost necessary to use a computer program, so I wrote such a program that works up to the 15th-order Hilbert Curve (this limit is because it is easy to go to that far with unsigned 32-bit integers, and less easy after order 15).  The program steps through the 2N x 2N grid along the Hilbert Curve path, labels the squares, determines which labels are prime numbers, and then uses the 4-neighbor flood-fill algorithm to find the size of all the islands in the whole grid and produce a population count of how many islands of various sizes there are.  It is probably obvious what question I initially wanted to explore: how many more iterations do we have to go to find an island bigger than the 13-square island in the diagram at the right above?  If you want to take a guess, do so before continuing to read.

The answer to the question just posed (when does the next biggest island occur?) is currently: we don’t know.  As shown by the table below, no new islands of size 13 were discovered out to the 15th-order Hilbert Curve, and no islands of size 12 have appeared either.  The behavior of all the smaller island sizes (1 to 11) is pretty much as one would expect, which is to say that as we continue searching more islands of a given size continue to be found.  Islands of size 11 are very rare but new ones continue to be encountered, including 4 new ones in the order 15 curve.


Hilbert Curve

1

2

3

4

5

6

7

8

9

10

11

12

13



Iteration





























1

0

0

1

0

0

0

0

0

0

0

0

0

0



2

0

0

0

0

2

0

0

0

0

0

0

0

0



3

6

0

2

0

1

0

0

0

0

0

0

0

1



4

25

7

2

0

3

2

0

0

0

0

1

0

1



5

80

31

17

6

6

5

1

0

0

0

1

0

1



6

340

128

66

22

14

6

1

1

0

0

1

0

1



7

1452

454

185

68

35

16

3

1

0

0

1

0

1



8

5805

1541

590

233

82

30

4

1

0

0

2

0

1



9

22685

5565

1821

637

198

62

18

5

0

0

2

0

1



10

87449

19602

5855

1830

537

154

45

13

1

0

2

0

1



11

337324

69318

18987

5272

1385

384

99

22

1

0

3

0

1



12

1295714

246587

61871

15615

3851

917

213

47

4

1

4

0

1



13

4966960

878897

205175

47738

10754

2313

504

106

21

4

5

0

1



14

19053955

3149515

682824

147447

30557

6272

1229

238

49

6

6

0

1



15

73888499

11641540

2395694

489712

95493

18232

3306

611

127

24

10

0

1



 Table 1.  Number of prime polyomino islands of each size that appear in each iteration (1 to 15) of a Hilbert Curve that’s been labeled with consecutive odd numbers.

Could it be that the size-13 island in the 8x8 square is a fluke, and other than that one there are no islands bigger than 11, no matter how far we go in the Hilbert Curve?  Possibly, but there is currently no mathematical proof that this is the case.

To perhaps gain some more insight we can generalize just slightly.  We still label the Hilbert path with successive odd numbers, but instead of 1 we can use any positive odd integer f  as the first number in the sequence.

Here are the results of counting prime islands for all (odd) values of f (first label on the curve) from 1 to 39.  We show the results just for order 15, since the order k Hilbert curve contains all smaller orders within it:

Prime Island Size (number of squares)

f

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

1

73888499

11641540

2395694

489712

95493

18232

3306

611

127

24

10

0

1

0

0

3

73087134

11345842

2297891

463010

89166

16830

2968

535

102

21

1

1

0

0

1

5

73087666

11343104

2300033

461941

89579

16843

3032

559

107

18

3

0

0

0

0

7

73091120

11344405

2298546

461754

89379

16837

3109

530

97

14

4

0

0

0

0

9

73088373

11344179

2298565

462931

89256

16672

3067

557

99

25

3

0

0

0

0

11

73085348

11343614

2300929

462407

89053

16747

2994

574

113

21

3

1

0

0

0

13

73086426

11342119

2300530

462307

89986

16610

3004

539

91

25

5

2

0

0

0

15

73092722

11346128

2295769

462466

89670

16782

2973

548

109

17

1

1

0

0

0

17

73092644

11344765

2296283

462919

89510

16803

3045

509

99

19

1

0

1

0

0

19

73086458

11342783

2299905

462892

89568

16676

2980

540

109

15

4

0

0

0

0

21

73092435

11344776

2296817

463368

88904

16746

3053

533

98

8

5

0

0

0

0

23

73081790

11346072

2298898

463274

89416

16547

3098

573

106

18

5

1

0

0

0

25

73093687

11339862

2299813

462581

89265

16810

3051

580

108

16

3

3

0

0

0

27

73090562

11342460

2300647

462064

88882

16873

2947

556

102

19

3

1

0

0

0

29

73085940

11346096

2299979

461275

89434

16723

3068

535

94

22

3

2

0

0

0

31

73089819

11343998

2296939

463694

89470

16657

3040

555

107

15

2

0

0

0

0

33

73088935

11345633

2298769

461980

89505

16591

2974

524

90

19

3

0

1

0

0

35

73088586

11342363

2297950

463738

89569

16733

3053

568

114

20

3

2

0

0

0

37

73094514

11343223

2297561

461970

89693

16751

3085

521

105

33

2

0

0

0

0

39

73093210

11341954

2300338

461629

89491

16578

2963

521

99

15

3

0

0

0

0

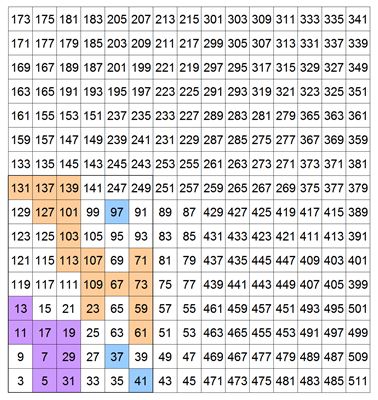

Right away we find a nice surprise: when f = 3, there is a size-15 island - and it occurs very near the origin!  Here is an illustration of the 16x16 square at the origin (i.e., the order-4 Hilbert curve) when f = 3.

Here we’ve only colored all the prime squares in the lower left 6x9 rectangle.  There are five islands in this region: the size-15 one (orange), one of size 8 (purple) and three singletons.  If the size-13 island in the 3rd Hilbert iteration with f = 1 is remarkable, this one of size 15 is even more remarkable.  No other size-15 islands were found out to f = 39, and there are none of size 14 either.

With the generalization to arbitrary f, the size-13 island with f = 1 is no longer unique: there is one with f = 17 and another when f = 33.  The size-13 island with f = 17 is located at x = 5860 and y = 4766, which means it can be found in the order-13 curve.  The size-13 island with f = 33 is located at x = 1345 and y = 993, so it first appears at order 11.

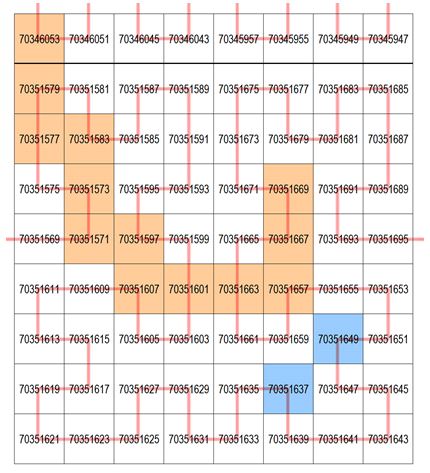

As an illustration of what some of these more far-flung islands look like, here is the island of size 13 when

f = 17, located at (x,y) = (5861, 4767), with all the primes colored as usual and the Hilbert Curve overlaid.  The orange squares form the prime island of size 13.



The bottom 8x8 of this 8x9 rectangle is a single continuous strand of the Hilbert Curve that starts at left center and exits at right center.  The top row of the 8x9 is a different piece of the curve that’s pretty far away, in terms of distance along the curve, from the bottom section.  The numbers in the bottom section are of the form 70351xxx while those in the top row are 70346xxx, making these two sections about 2500 steps away from each other (the numbers are about 5000 apart, but this is divided by 2 to get number of steps, since the numbers count by 2).  Note that 12 of the 13 primes are located in the contiguous bottom section of the curve!

The problem we propose is to continue the search for prime islands.  Some of the main open questions are:

1) When f = 1 (arguably the most natural case), are there more islands of size > 11 other than the size-13 island near the origin?

2) For f > 1, is there an island bigger than the size-15 island near the origin when f = 3?  (Side note: a good argument can be made that f=3 is even more natural than f=1, since it eliminates the problematic “unit” of 1.)  Is there an island with size > 15?  No island of size 14 has be found yet, either.

Numbering the path with odd numbers can be viewed as “use all natural numbers but eliminate multiples of 2 in order to increase the density of primes”.  This can be generalized to “use all natural numbers but eliminate multiples of the first m primes”.  So the m=2 numbering would eliminate multiples of 2 and 3 (the sequence starts 5, 7, 11, 13, 17, 19, 23, 25 [the first non-prime], etc).  As m increases the expected island size increases, and indeed by increasing m it is possible to guarantee the appearance of arbitrarily-large islands.  Perhaps only the first few small values of m make interesting problems.

3) Would you like to experiment with this last way of numbering?

Postscript

It would be very desirable to have a second independent computer program to check the results given here.  Although we have some confidence that our program is correct, independent verification of these calculations is important.
